RGB+W 24W/m
 |
 |
 |

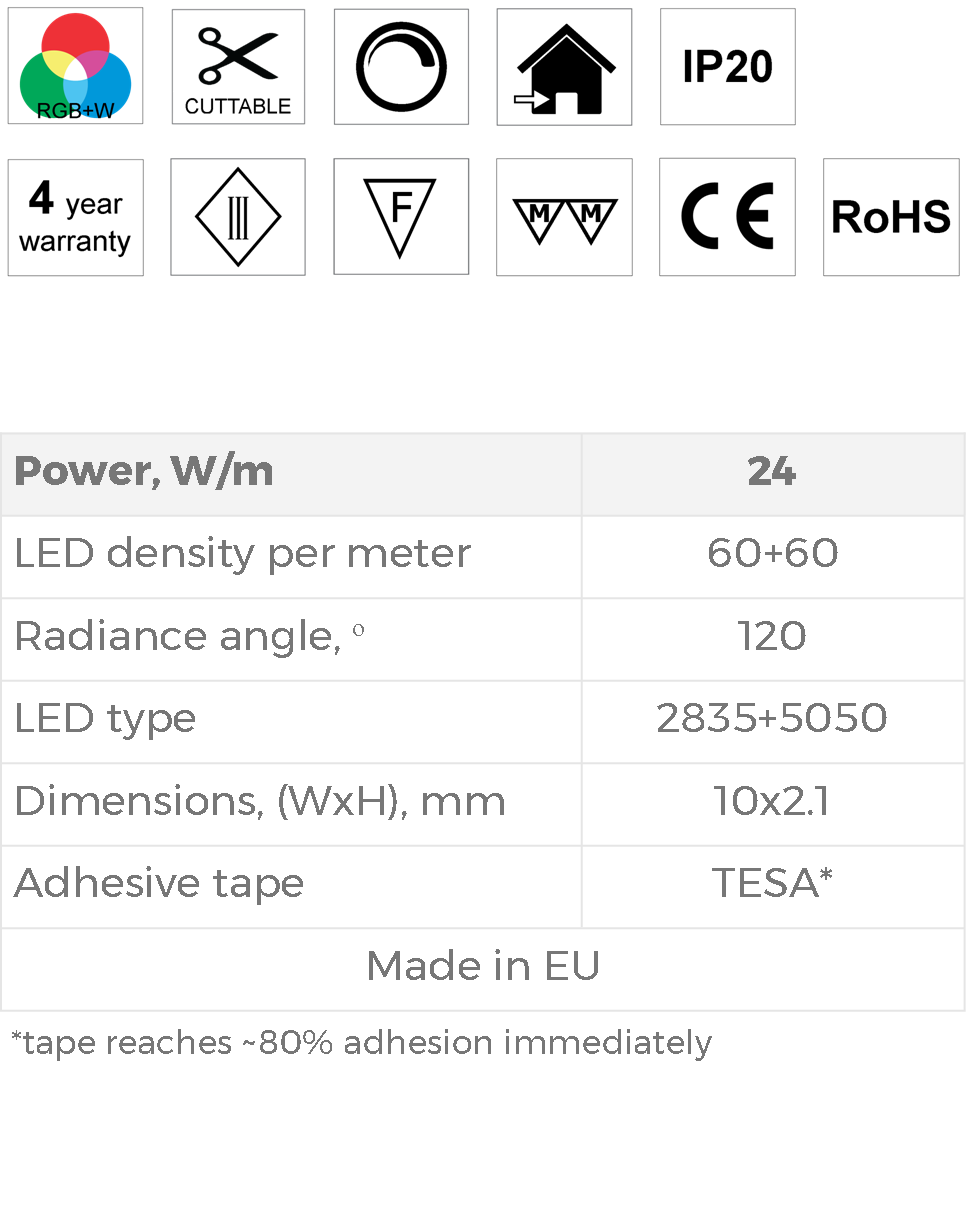

- Flexible, cuttable 24W/m RGB+W LED strip, perfect for creating light installations;
- High quality Samsung SMD LEDs used for white light;
- RGB LEDs chosen for their great color mixing properties;
- 4-year manufacturer's warranty (L70 > 36000 h);
- LED strip made in EU;
Electrical data
|
Item family code |
Nominal voltage |
Type of current |
Nominal current |
Rated power |
|
RGB534-24 |
24 V |
DC |
1 A/m |
24 W/m |

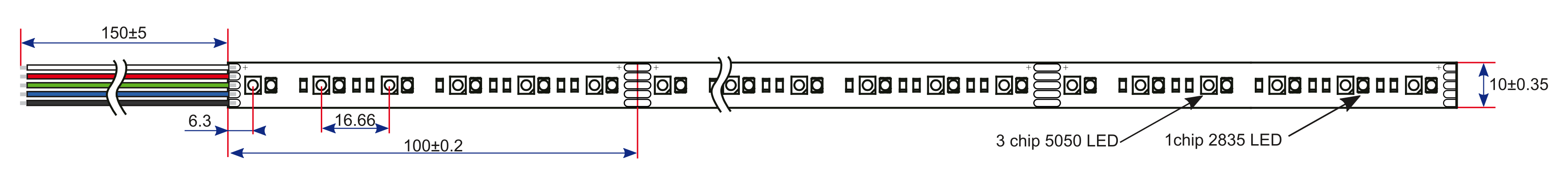

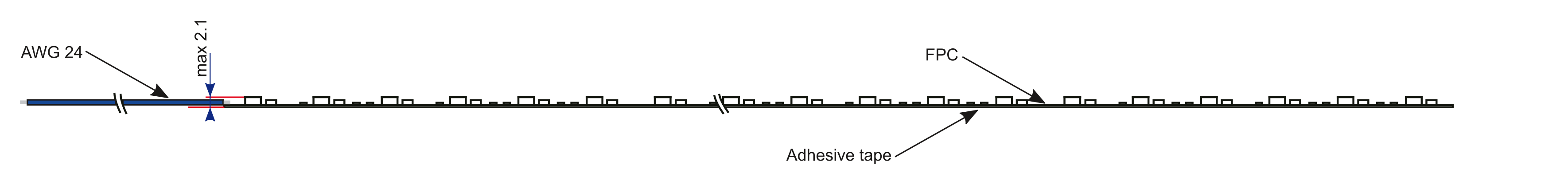

Dimensions
|
Item family code |
|
|
RGB534-24 |
 |
 |
|
1 LED strip can be cut every 100 mm
2 wires are soldered at both ends of reel in typical product assembly

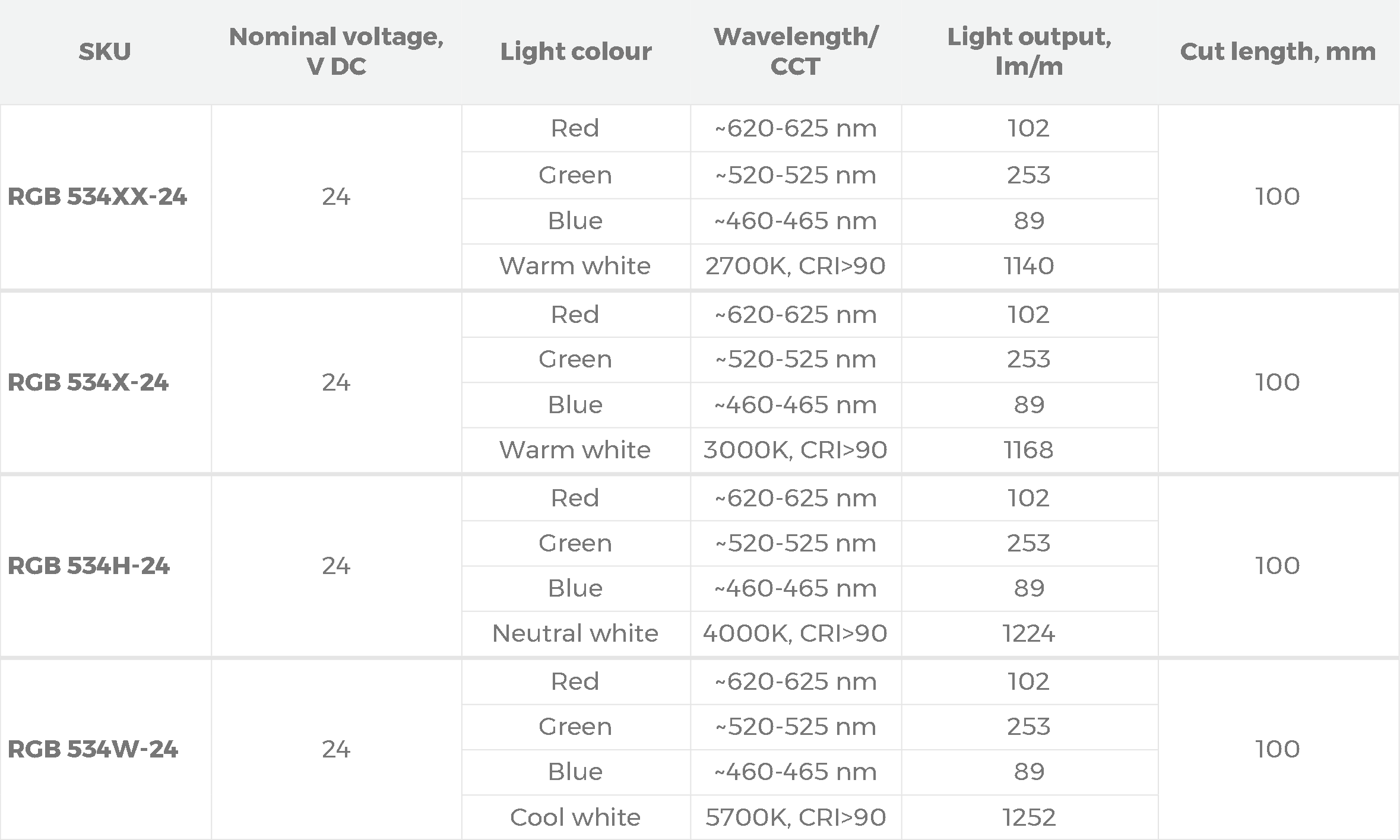

Photometric data
|
Item code |
Color |
Color description |
Light output |
Efficiency |
|
RGB534XX-24 |
Red |
~620-625nm |
102 lm/m |
28.5 lm/W |
|
Green |
~520-525nm |
253 lm/m |
66.7 lm/W |
|
|
Blue |
~460-465nm |
89 lm/m |
19.5 lm/W |
|
|
Warm white |
2700K, CRI>90 |
1140 lm/m |
95.0 lm/W |
|
|
RGB534X-24 |
Red |
~620-625nm |
102 lm/m |
28.5 lm/W |
|
Green |
~520-525nm |
253 lm/m |
66.7 lm/W |
|
|
Blue |
~460-465nm |
89 lm/m |
19.5 lm/W |
|
|
Warm white |
3000K, CRI>90 |
1168 lm/m |
97.3lm/W |
|
|
RGB534H-24 |
Red |
~620-625nm |
102 lm/m |
28.5 lm/W |
|
Green |
~520-525nm |
253 lm/m |
66.7 lm/W |
|
|
Blue |
~460-465nm |
89 lm/m |
19.5 lm/W |
|
|
Neutral white |
4000K, CRI>90 |
1224 lm/m |
102lm/W |
|
|
RGB534W-24 |
Red |
~620-625nm |
102 lm/m |
28.5 lm/W |
|
Green |
~520-525nm |
253 lm/m |
66.7 lm/W |
|
|
Blue |
~460-465nm |
89 lm/m |
19.5 lm/W |
|
|
Cool white |
5700K, CRI>90 |
1252 lm/m |
104lm/W |
Temperature conditions
|
Item family code |
Ambient working temperature, ta |
Product working temperature |
Storage temperature |
|
RGB534-24 |
-30C ~ +300C |
Less than 550C at room temperature 230C |
-40C ~ +850C |
Standards and declarations of conformity
Declarations of conformity: CE (RoHS is part of CE)
Important: Product is assembled using white LEDs that have been tested according to LM-80 for no less than 6000 hours.
Standard packaging
Product packaging is designed and manufactured based on: EN 13427:2006, EN 13427:2006.
Packaging materials can be recycled according to EN 13430:2007
Cardboard box. Size 187*183*20mm
Cardboard reel. Size D=190mm h=15mm
LED strip length per reel—5 meters
Note: installation instructions are included in every box
All information is provided considering 1 meter length. Real life performance may
fluctuate due to tolerances in components used in manufacturing.
Installation
1. Cut the required amount of LED strip (see cut recommendations in Table 1).
2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.
3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.
Do not bend the strip more than 1 time and bend it not less than 20 mm radius.
NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.
4. Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.
Connect LED strip to a power supply in accordance with polarity and presented connections schemes.
