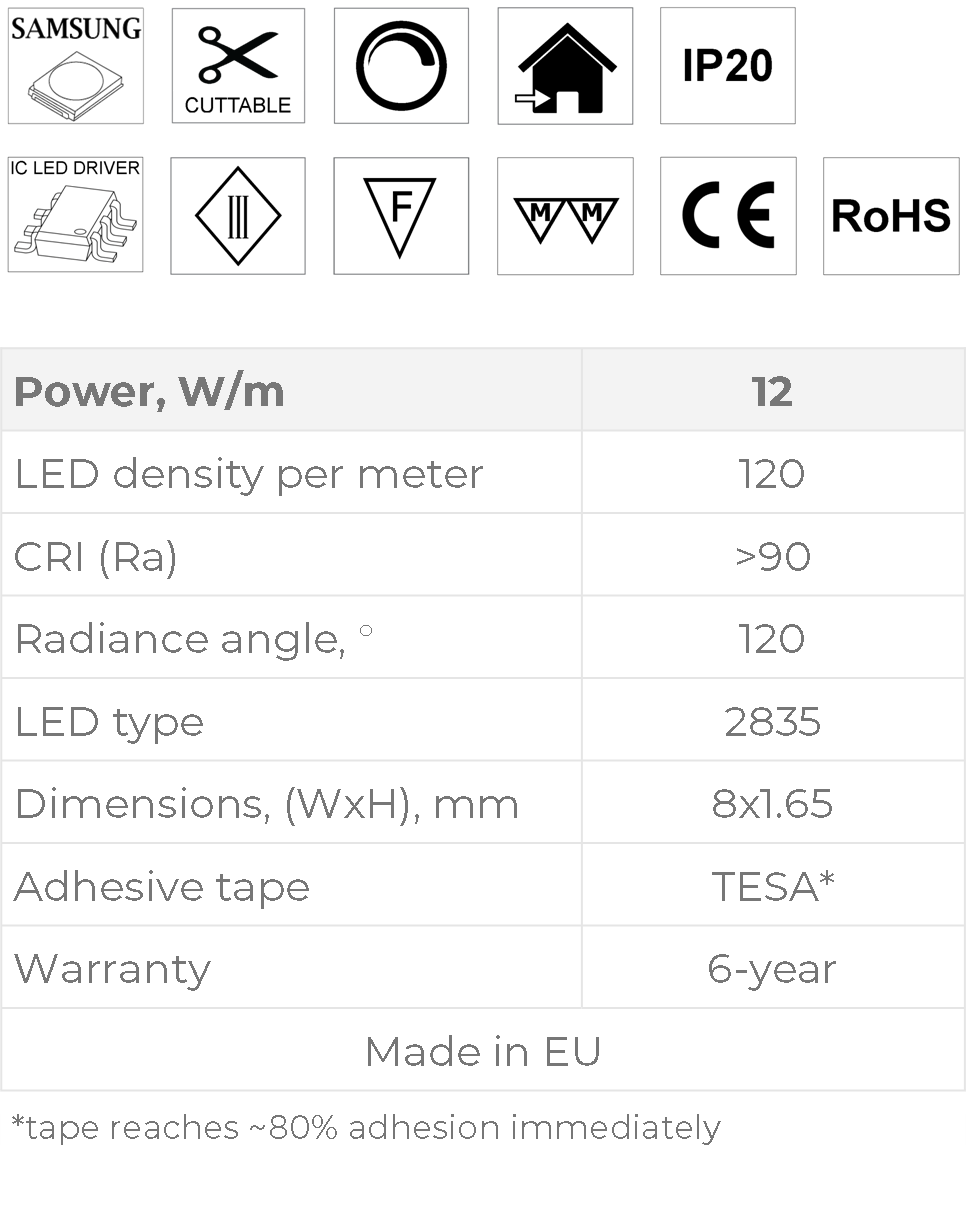

VIP 12W/m
 |
 |
|
- Flexible, cuttable 12W/m LED strip, perfect for creating light installations;
- High quality light color conforming to latest EU lighting requirements;
- IC LED drivers ensure uniform brightness even when powering 12m of strip from one end;
- High quality Samsung LEDs;
- LED strip made in EU;
- 6 year manufacturers warranty (L70 >54 000 val.);
- IP20 ir IP67 ratings available.
Electrical data
|
Item family code |
Nominal voltage |
Type of current |
Nominal current, |
Rated power |
|
1212D24 |
24 V |
DC |
0,5 A/m |
12 W/m |

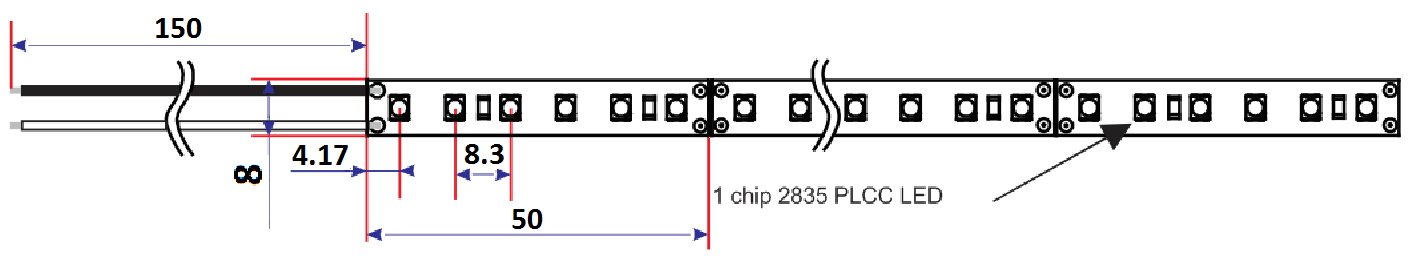

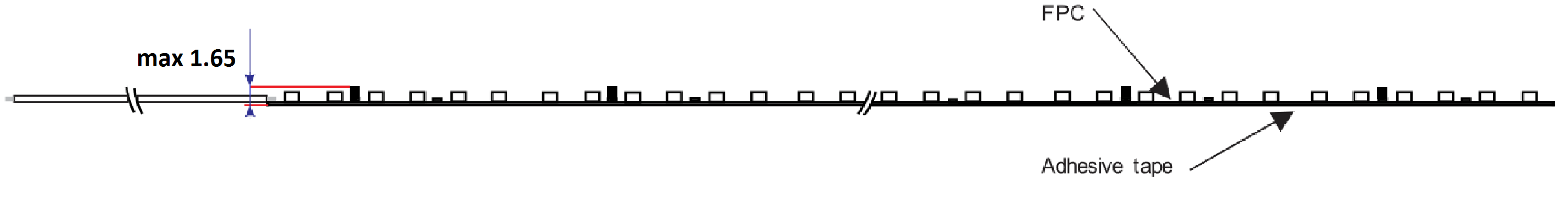

Dimensions
|
Item family code |
|
|
1212D24 |
|
|
|
|
2 wires are soldered at both ends of reel in typical product assembly

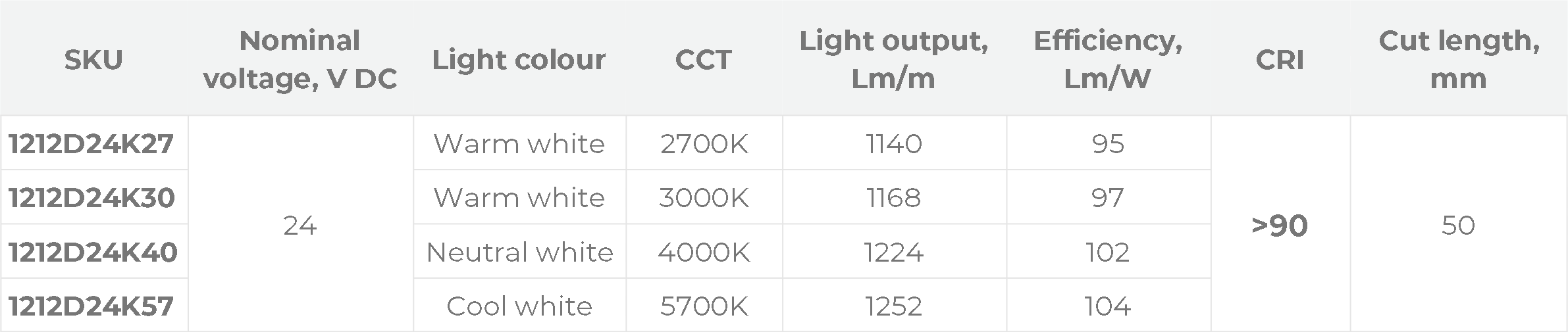

Photometrical data
|
Item code |
CCT |
Color |
CRI |
Light output |
Efficiency |
|
1212D24K27 |
2700K |
Warm white |
>90 |
1140 lm/m |
95 lm/W |
|
1212D24K30 |
3000K |
Warm white |
1168 lm/m |
97 lm/W |
|
|
1212D24K40 |
4000K |
Neutral white |
1224 lm/m |
102 lm/W |
|
|
1212D24K57 |
5700K |
Cool White |
1252 lm/m |
104 lm/W |
Temperature conditions
|
Item family code |
Ambient working temperature, ta |
Product working temperature |
Storage temperature |
|
1212D24 |
-30C ~ +300C |
Less than 600C at room temperature 230C |
-40C ~ +850C |
Standards and declarations of conformity
Declarations of conformity: CE (RoHS is part of CE)
Important: Product is assembled using LED packages that are tested using LM-80 for no less than 6000 hours.
Standard packaging
Product packaging is designed and manufactured based on: EN 13427:2006, EN 13427:2006. Packaging materials can be recycled according to EN 13430:2007
Carton box. Size 187*183*20mm
Carton reel. Size D=190mm h=15mm
LED strip length per reel—5m
Note: installation instructions are included in every box
All information is provided considering 1 meter length. Real life performance may
fluctuate due to tolerances in components used in manufacturing.
Installation
1. Cut the required amount of LED strip (see cut recommendations in Table 1).
2. Solder wires using flux. In order to avoid a short circuit – soldering place
must be insulated using heat shrink.
3. Mounting surface has to be clean, without any grime, grease and dust.
Take off security tape and without pressing on the diodes, glue the strip.
Do not bend the strip more than 1 time and bend it not less than 20 mm radius.
NOTE: Additional cooling is required for LED strips more powerful than 10 W/m.
4. Select a suitable power supply according to the voltage and the total power of the entire LED strip length.
Selecting a power supply, allow ~30% power headroom.
Connect LED strip to a power supply in accordance with polarity and presented connections schemes.
